Product details
1.Full hydraulic crawler type rotary drilling rig adopt pressurized drilling mode, enabling rotary drilling depth is 5~60m.matching the
different specifications of drilling tools,pile hole diameter range up to 800-2000mm.
2.It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability.
3.Cummins electric control turbo-supercharged engine is used.It complies with Euro III emission standard,In addition,it has strong power,
which is sufficient to satisfy the construction on the plateau. Its noise is up to the national standard.
4.The new generation rotary drive adopts multi-gear control, self-adaptive techniques, and double buffering system which can increase
drilling efficiency and safety.
5.Highly automatization system,advanced hydraulic system and heavy wide chassis ensure efficient,safe and stable operation.
6.This machine is applicable to slop shield piles,civil construction,new rural construction,municipal construction,and the strata contain:soil,
clay,fill soil,silt,silt layer,and even some geology with pebbles,gravel;widely used in high-speed rail trestle piles, slop shield piles, photovoltaic
power station foundation pile, power grids, landscaping and other projects.
Parameter

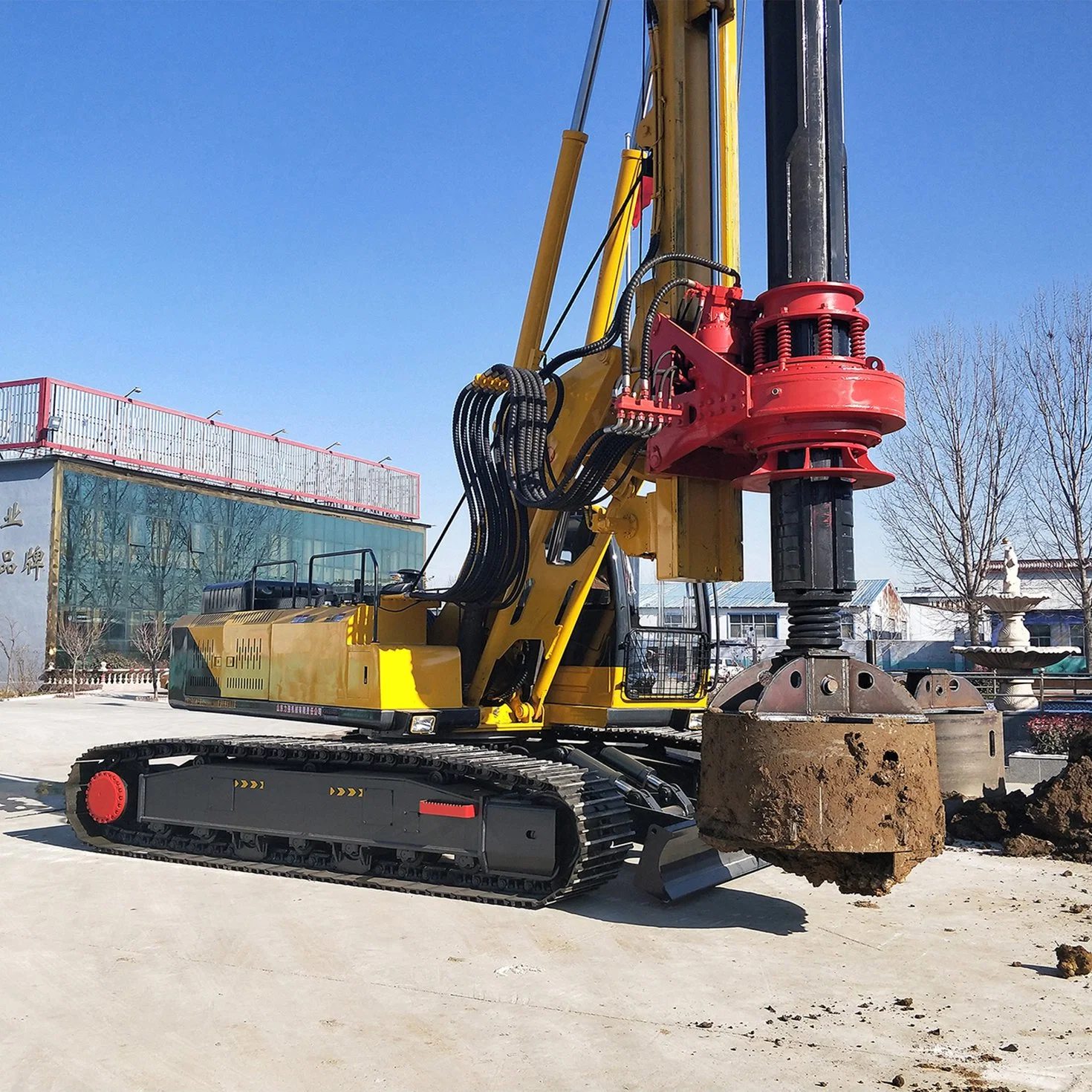

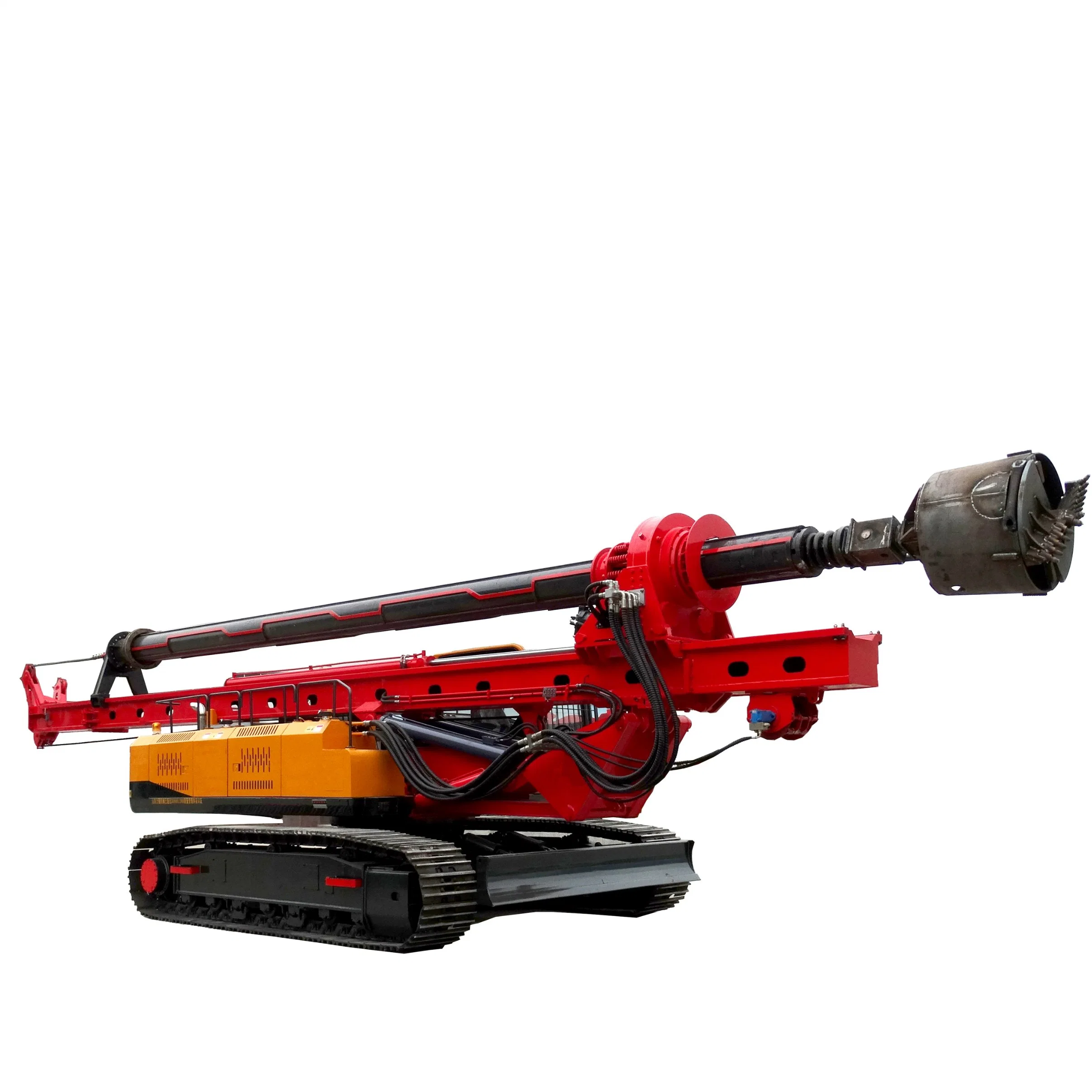

Machine Photos
![Customized High Torque Crawler Rotary Drilling Rig 60m Hydraulic Diesel Engine Borehole Drilling Rig](https://img3.grofrom.com/vime/2ed5d4ad6e14b594425c41cfb310314f.webp)
![Customized High Torque Crawler Rotary Drilling Rig 60m Hydraulic Diesel Engine Borehole Drilling Rig](https://img3.grofrom.com/vime/43bc6c9da3cec83144f8971004be0dff.webp)
![Customized High Torque Crawler Rotary Drilling Rig 60m Hydraulic Diesel Engine Borehole Drilling Rig](https://img3.grofrom.com/vime/b498ba26b45e9d8335bc7404d191898e.webp)
![Customized High Torque Crawler Rotary Drilling Rig 60m Hydraulic Diesel Engine Borehole Drilling Rig](https://img3.grofrom.com/vime/daa58da5b14ea0fa018a9a482811f935.webp)
![Customized High Torque Crawler Rotary Drilling Rig 60m Hydraulic Diesel Engine Borehole Drilling Rig](https://img3.grofrom.com/vime/1d5f8ba2c874970066d4a6083b3373d5.webp)
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is half a year or 1000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned machine.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
1.Full hydraulic crawler type rotary drilling rig adopt pressurized drilling mode, enabling rotary drilling depth is 5~60m.matching the
different specifications of drilling tools,pile hole diameter range up to 800-2000mm.
2.It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability.
3.Cummins electric control turbo-supercharged engine is used.It complies with Euro III emission standard,In addition,it has strong power,
which is sufficient to satisfy the construction on the plateau. Its noise is up to the national standard.
4.The new generation rotary drive adopts multi-gear control, self-adaptive techniques, and double buffering system which can increase
drilling efficiency and safety.
5.Highly automatization system,advanced hydraulic system and heavy wide chassis ensure efficient,safe and stable operation.
6.This machine is applicable to slop shield piles,civil construction,new rural construction,municipal construction,and the strata contain:soil,
clay,fill soil,silt,silt layer,and even some geology with pebbles,gravel;widely used in high-speed rail trestle piles, slop shield piles, photovoltaic
power station foundation pile, power grids, landscaping and other projects.
Parameter
Technical parameters of 60m | ||
1 | Power unit/ Rotary head | |
1.1 | Output torque | 180KN.M |
1.2 | Drilling rate | 5-28 r/min |
2 | Feed cylinder | |
2.1 | Max.push | 170 KN |
2.2 | Max.pull | 180 KN |
2.3 | Stroke of feed cylinder | 4000 mm |
2.4 | Max. working pressure | 32Mpa |
3 | Main winch | |
3.1 | Max.pull force | 160 KN |
3.2 | Max.line speed | 60m/min |
3.3 | Rope diameter | 28mm |
4 | Auxiliary winch | |
4.1 | Max.pull force | 50 KN |
4.2 | Max.line speed | 60m/min |
4.3 | Rope diameter | 14mm |
5 | Diesel engine | |
5.1 | Manufacturer | Cummins |
5.2 | Rated output | 190kw |
6 | Caterpillar track(retractable - type) | |
6.1 | Max. speed | 3 km/h |
6.2 | Max.slope | 15° |
7 | Comprehensive others | |
7.1 | Max. Diameter | 1800 mm |
7.2 | Depth | 60m |
7.3 | Turning radius | 5600 mm |
7.4 | Weight | 58000kg |
7.5 | Dimension | 16*3.2*4m |
![Customized High Torque Crawler Rotary Drilling Rig 60m Hydraulic Diesel Engine Borehole Drilling Rig](https://img3.grofrom.com/vime/2ed5d4ad6e14b594425c41cfb310314f.webp)
![Customized High Torque Crawler Rotary Drilling Rig 60m Hydraulic Diesel Engine Borehole Drilling Rig](https://img3.grofrom.com/vime/43bc6c9da3cec83144f8971004be0dff.webp)
![Customized High Torque Crawler Rotary Drilling Rig 60m Hydraulic Diesel Engine Borehole Drilling Rig](https://img3.grofrom.com/vime/b498ba26b45e9d8335bc7404d191898e.webp)
![Customized High Torque Crawler Rotary Drilling Rig 60m Hydraulic Diesel Engine Borehole Drilling Rig](https://img3.grofrom.com/vime/daa58da5b14ea0fa018a9a482811f935.webp)
![Customized High Torque Crawler Rotary Drilling Rig 60m Hydraulic Diesel Engine Borehole Drilling Rig](https://img3.grofrom.com/vime/1d5f8ba2c874970066d4a6083b3373d5.webp)
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is half a year or 1000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned machine.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
