Air emission mobile monitoring system
Equipment overview

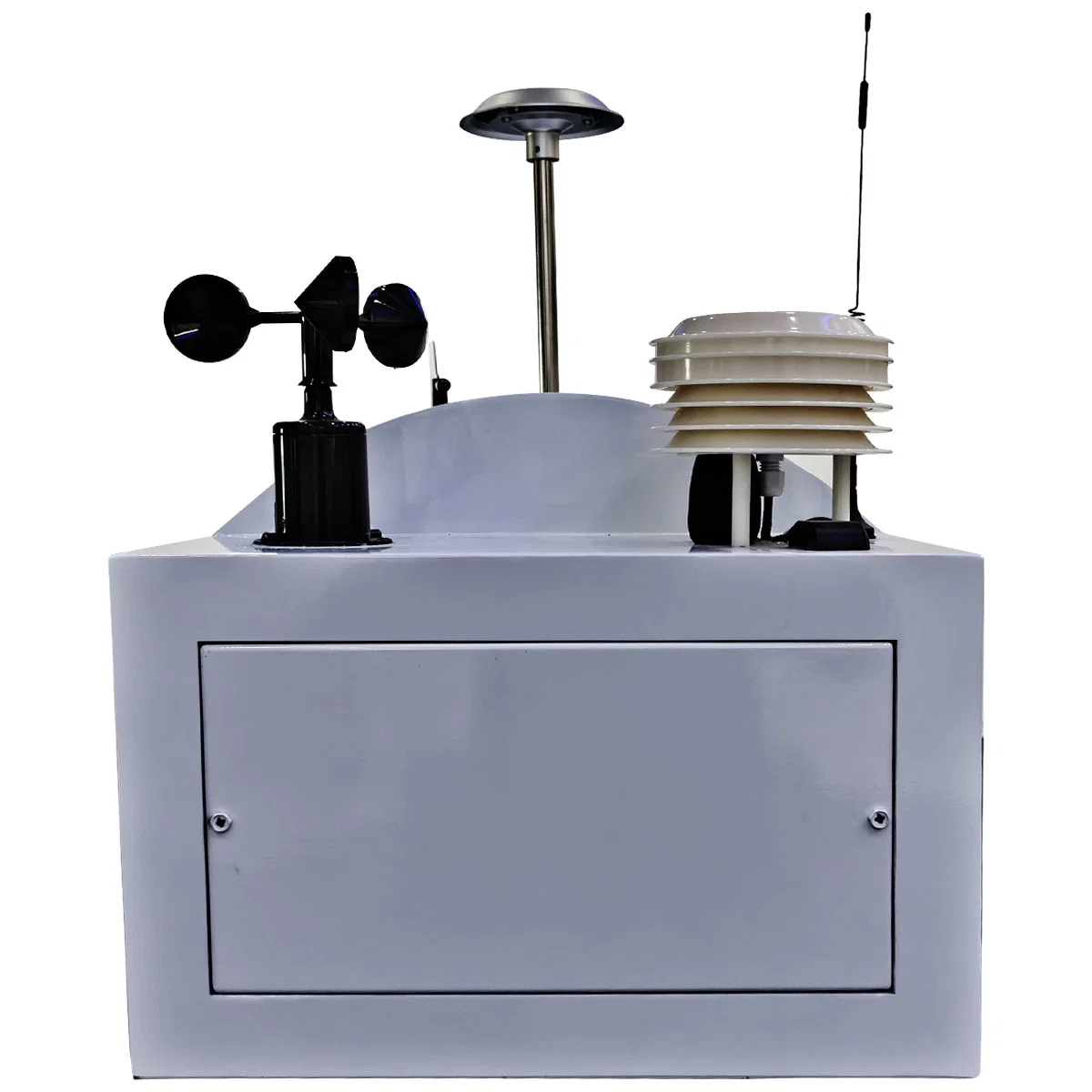

This equipment is installed on the roof of the car, equipped with a GPS positioning module to realize real-time return of monitoring points, real-time display of monitoring values along the trajectory; real-time monitoring 24 hours a day, and alarm thresholds can be set; vehicle-mounted mobile points make law enforcement locations unrestricted , To ensure the authenticity and validity of the data; with automatic recording, over-limit alarm, automatic collection, processing and storage of regional environmental data, strong scalability, the system program adopts a modular structure, which is convenient for function expansion or shielding. Access to various sensors; adopts rainproof design with IP65 protection level, each sensor has the characteristics of rapid response and long-term operation in harsh environments, high measurement accuracy, large storage capacity, continuous monitoring, stable performance, and high reliability; The car power supply is directly powered.
Equipment usage
The equipment is installed on the car to monitor the surrounding environment of various places in the city, whether the dust, noise, toxic and harmful gas exceed the standard, etc., record the data in time, find the environmental unqualified points, and report to the relevant departments in time to deal with it in time to ensure people's lives Healthy environment.
Equipment technical parameters

equipment hardware introduction and use

1. Meteorological noise sensor

The product has high integration, high precision, small error, and high-quality light 6-layer shutter structure. Comply with WMO standard, small size, light weight, rain and snow proof, high quality anti-ultraviolet material, can effectively prevent aging, 30~120Dba



 Small size, light weight, external sensor probe, can effectively sense the current temperature and humidity of the environment, using Swiss imported sensors, waterproof, moisture-proof, anti-condensation. Temperature accuracy ±0.5ºC, humidity accuracy ±3%RH.



 The wind speed and direction sensor has the advantages of small size, light weight, rainproof, and high stability. It can effectively measure the wind direction and wind speed information of the current environment. Dynamic response time ≤0.5s.





   Atmospheric pressure detection sensor, used to detect the atmospheric pressure in the current environment, the absolute measurement range is 0~120Kpa, temperature -40~80ºC, pressure resolution 0.1Kpa, temperature

resolution 0.1ºC, pressure accuracy ±0.15Kpa, temperature accuracy ±0.5°C.






   PM100 sensor, also known as total dust sensor and flying dust sensor, uses the principle of laser scattering to obtain the mass concentration of suspended particles in the air from 1 to 100 microns. It uses imported lasers and photosensitive components, and the data is stable and reliable; built-in fan, suitable for TSP monitoring, Dust monitoring, purification monitoring, environmental monitoring of roads, factories, mines, stone processing plants, and construction sites. Working atmosphere pressure is 86~110Kpa, response time is less than 6s, sensitivity is 1μg/m³.







  The gas adopts a pump to extract part of the air from the external environment. The gas passes through CO, SO2, NO2, VOCS and other sensors to analyze whether the content of harmful gases in the air exceeds the standard. It is small in size and light in weight. It is widely used in the gas analysis industry. .







Introduction and use of equipment software
  For the communication protocol, see Annex 1: Data format description


Equipment use and precautions
  1. The overall size of the equipment 1104*454*284






2. The fixed dimensions of equipment installation are shown in the figure.






Homogeneity
1. DS-ATM20-ME07 air emission mobile monitoring system 1 set
2. Product manual 1 copy
3. 1 copy of product qualification certificate
This product has a warranty period of 12 months since the day it leaves the factory, and lifetime maintenance.
